Introduction

Inside of a Client Site (section Security and Patrol, Site Locations & Sections) is a means of defining locations & sections in a particular order with an up-down sorting and parent-child structuring. The TrackTik API allows you to define this structure/ordering.

The basic approach and template is the following.

Obtain a list of Site Location IDs

[GET] /site-locations?account={id}

{
   "name": "floor 1",
   "details": "it's flat",
   "type": "",
   "account": 687,
   "parent": 0,
   "order": 1,
==> "id": 466
},
{
   "name": "Back Door",
   "details": "",
   "type": "SECTION",
   "account": 687,
   "parent": 466,
   "order": 2,
==> "id": 470
},
{
   "name": "E1",
   "details": "",
   "type": "ELEVATOR",
   "account": 687,
   "parent": 466,
   "order": 3,
==> "id": 471
}

Scenario: top-down order

To keep a flast list of items in an order that you define, you can use this template:

[POST] /clients/687/actions/sort-site-locations

{
   "siteLocations":[
      {"id": 466},
      {"id": 470},
      {"id": 471}
   ]
}

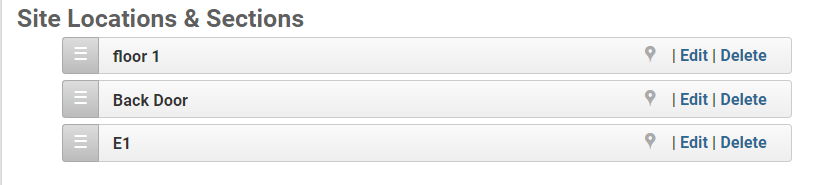

The comma separated list is an array where the top-down order that you place them in the payload will associate them as a top-down order in the TrackTik web portal. The above action/payload produces the following result:

Scenario: top-down order and with children under a parent

Imagine a scenario that you want to place locations E1 and Back Door as children locations to the top location Floor 1.

[POST] /clients/687/actions/sort-site-locations

{
   "siteLocations":[
      {
         "id":466,
         "children":[
            {"id":470},
            {"id":471}
         ]
      }
   ]
}

Notice how for any “id” : value item JSON object, you can add a child array of “id”:value items.

Maximum Tree Depth = 10

You can nest children under children where the top child is a parent of them. You may nest this depth up to 10 degrees of depth in total for any single tree of items.
