Create a geofence

To navigate the creation map

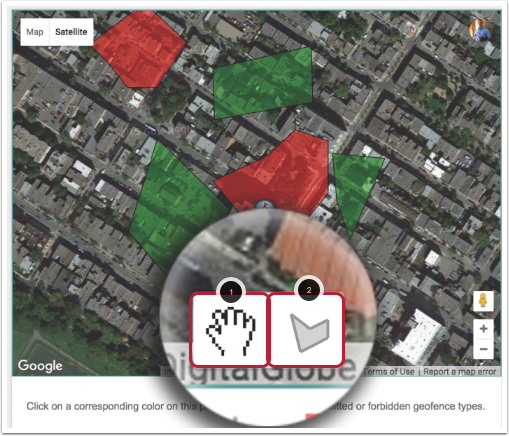

At the bottom of the Geo-Fence map, there are two icons. These can be used for navigating the map and creating geofences.

Hand Icon: Use this icon to navigate the map. Click to grab a position on the map and drag the map to navigate to the desired area.

Polygon Icon: Click on the Polygon icon to create a geo-fence. Once this icon is clicked, the mouse will act as a shape-drawing tool. Click on specific locations on the map to create points that will act as intersections for the lines of the desired shape.



To create a new geofence

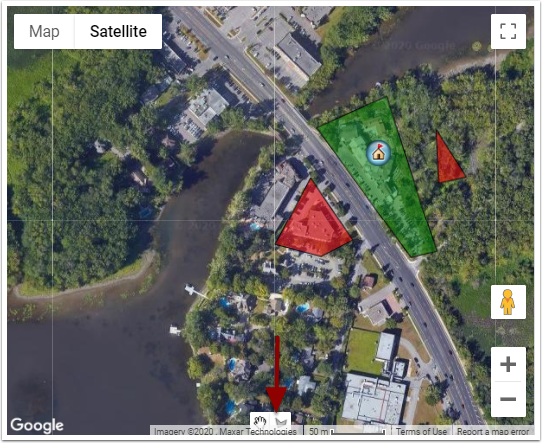

  • Select the Polygon icon at the bottom of the screen.

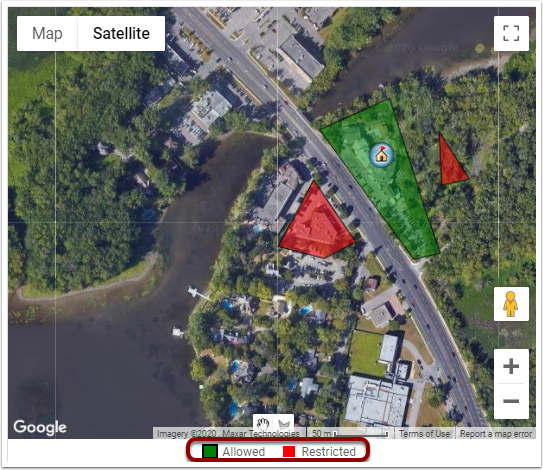

  • Select “Allowed” or “Restricted” below the map. By default, it is on ‘Allowed’
  • Add additional points as needed to create the desired shape for the geofence.
  • After creating the last unique point, click on the original starting point. This will close the shape and prompt the pop-up window.

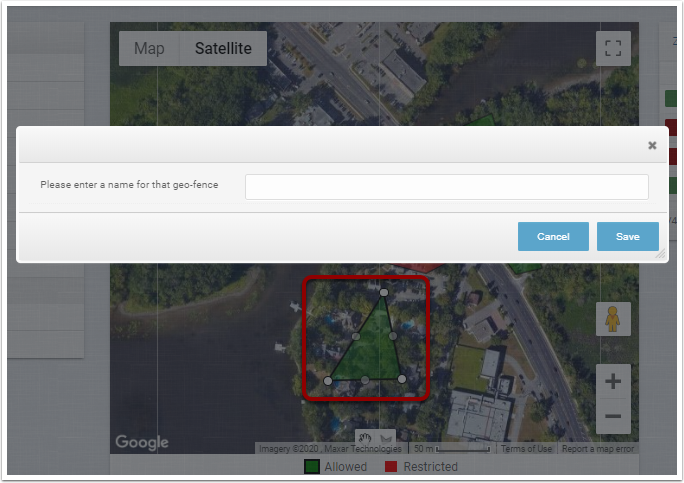

  • In the pop-up window, provide a name for this geofenced area.
  • Click on the Save button to create the new geofence.
